Box Type Furnace
Home > Product > Box Type Furnace

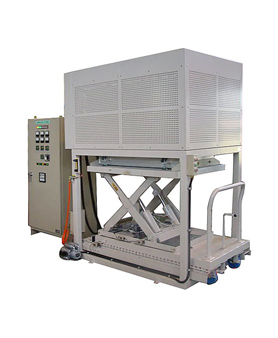

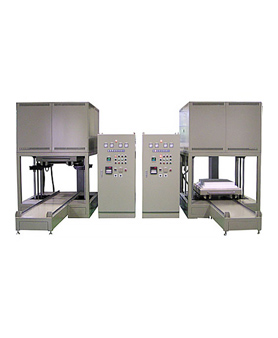

TNEKF - 17 Ⅱ, Ⅲ, Ⅳ, Ⅴ, Ⅵ Bogie Elevating Type Large-sized High-temperature Furnace
※unit(mm)
| Model name | TNEKF - 17Ⅱ | TNEKF - 17Ⅲ | TNEKF - 17Ⅳ | TNEKF - 17 Ⅴ | TNEKF - 17Ⅵ |
|---|---|---|---|---|---|
| Heat zone | 550W, 550D, 500H | 700W, 700D, 500H | 500W, 1000D, 500H | 600W, 1400D, 500H | 1200W, 1200D, 500H |
| Temperature of use | 1700℃ | ||||
| Temperature distribution | ±3 - 5℃ | ||||
| Atmosphere | Air | ||||
| Heating element | MoSi2 | ||||
| Power(KVA) | 35 | 40 | 60 | 70 | 100 |
| Weight (Kg) | About 950 | About 1100 | About 1200 | About 1400 | About 1800 |
TNBKF-20, 30, 40SK MoSi2 Furnace
※unit(mm)
| Model name | TNBKF-20SK | TNBKF-30SK | TNBKF-40SK |
|---|---|---|---|
| Heat zone | 550W, 550D, 500H | 300 X 400D | 400 X 500D |
| Temperature of use | Max. 1750℃ | ||
| Heating element | MoSi2 | ||
| Atmosphere | Air | ||
TNBKF-20, 30, 40SK MoSi2 Furnace
※unit(mm)
| Model name | TNBSF-20Si | TNBSF-30Si | TNBSF-40Si |
|---|---|---|---|
| Heat zone | 200 X 300D | 300 X 400D | 400 X 500D |
| Temperature of use | 1400℃ | ||
| Heating element | SiC | ||
| Atmosphere | Air | ||
