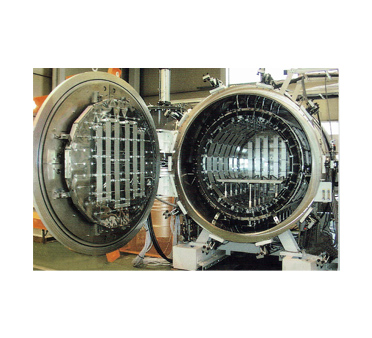

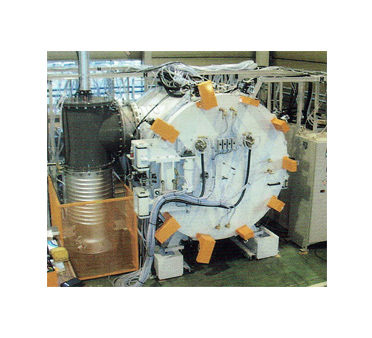

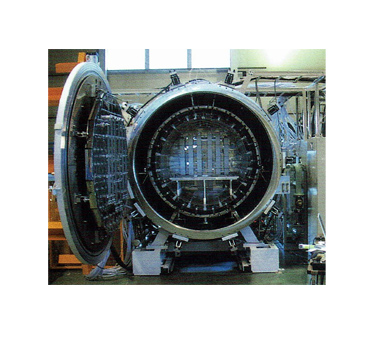

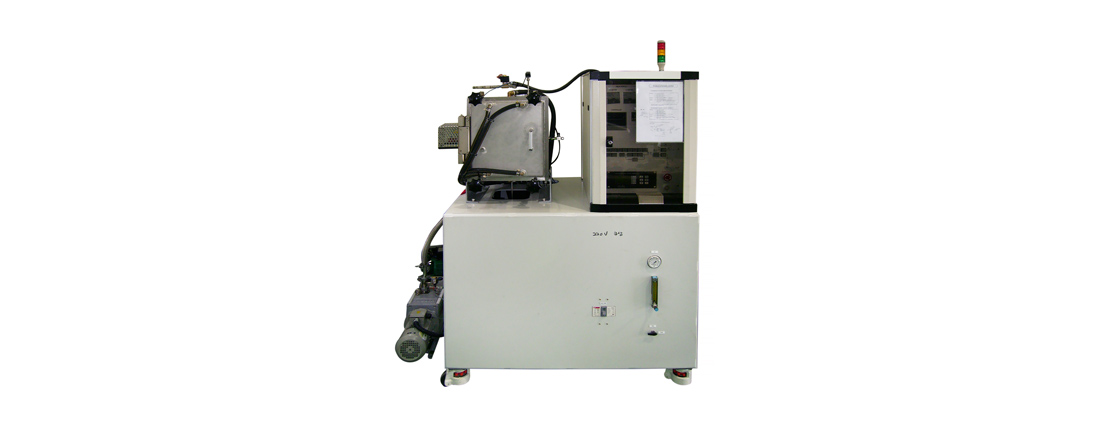

TNRLT Front Loading Method Metal Furnace
※unit(mm)
| Heat zone | Can be adjusted according to consumer needs |
|---|---|
| Temperature of use | Maximum 1700℃ |
| Atmosphere pressure | 10(-4)Pa ~ 0.14kgf/cm2 |
| Atmosphere | Vacuum,Ar, N2, He, H2 |
| Heater | Tungsten or Molybdenum |
| Insulating material | Tungsten + Molybdenum |
| Purpose | Firing of various materials, electronic parts, glass products |
| Option | NH3 , Pressure 9.9kgf/cm2 |

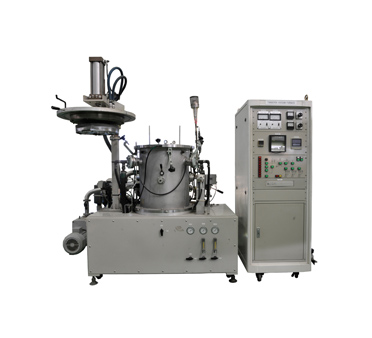

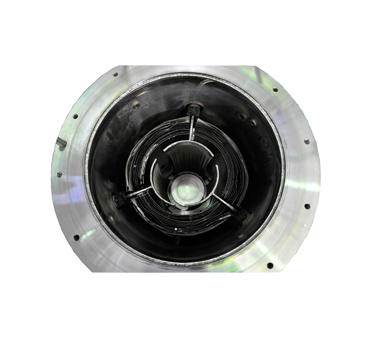

TNRTT Tungsten Vacuum Furnace
※unit(mm)
| Heat zone | 150 Dia x 300H |
|---|---|
| Max temp | 2500℃ |
| Degree of vacuum | 5 x10-5 torr |
| Gas | N2 |
| Heater | Tungsten Mesh Heater |
| Insulation | W+Mo |

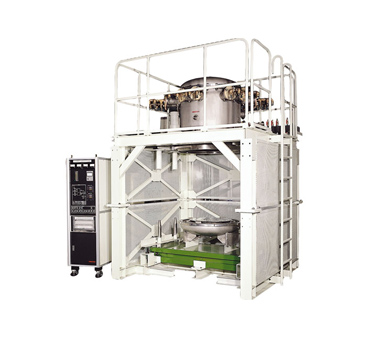

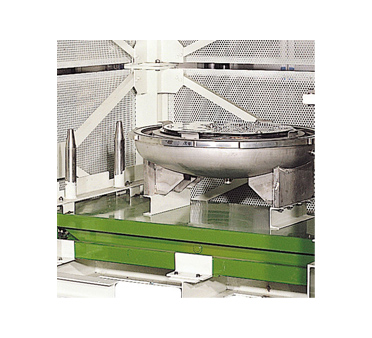

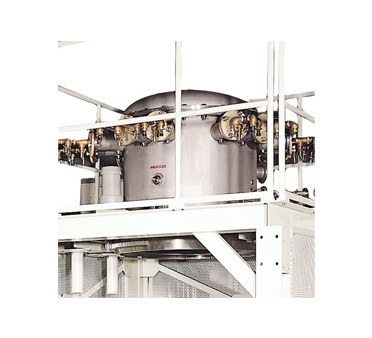

TNERT Bogie Elevating Type High Temperature Vacuum Furnace
※unit(mm)
| EFD - 20M | EFD - 30M | EFD - 40M | |
| Heat zone | 200Φ X 200H | 300Φ X 300H | 400Φ X 400H |
| Temperature of use | 2200℃ | ||
| Pressure | X10(-5)torr - 1.14Kgf/㎠ | ||
| Atmosphere | Vacuum, N2, Ar, He | ||
| Heating element | Tungsten Heater | ||
| Power(KVA) | 40 | 40 | 100 |
| Cooling water (ℓ/min.) | 40 | 60 | 100 |

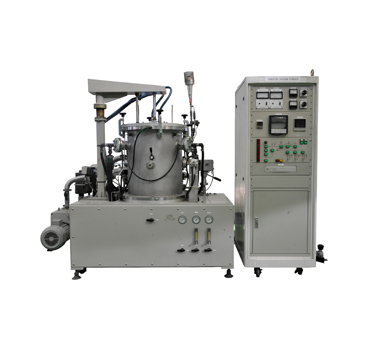

TNTT High Temperature Vacuum Furnace
※unit(mm)
| Heat zone | 140 x 140 x 170D ※Can be changed according to consumer needs |
|---|---|
| Max temp | Use at 1800℃ |
| Degree of vacuum | 10(-6)g |
| Atmosphere | N2 |
| Heater | Tungsten Rod Heater |
| Insulating material | Tungsten + Molybdenum combination |
| Utility | Power 25KVA, cooling water, process gas, air |
